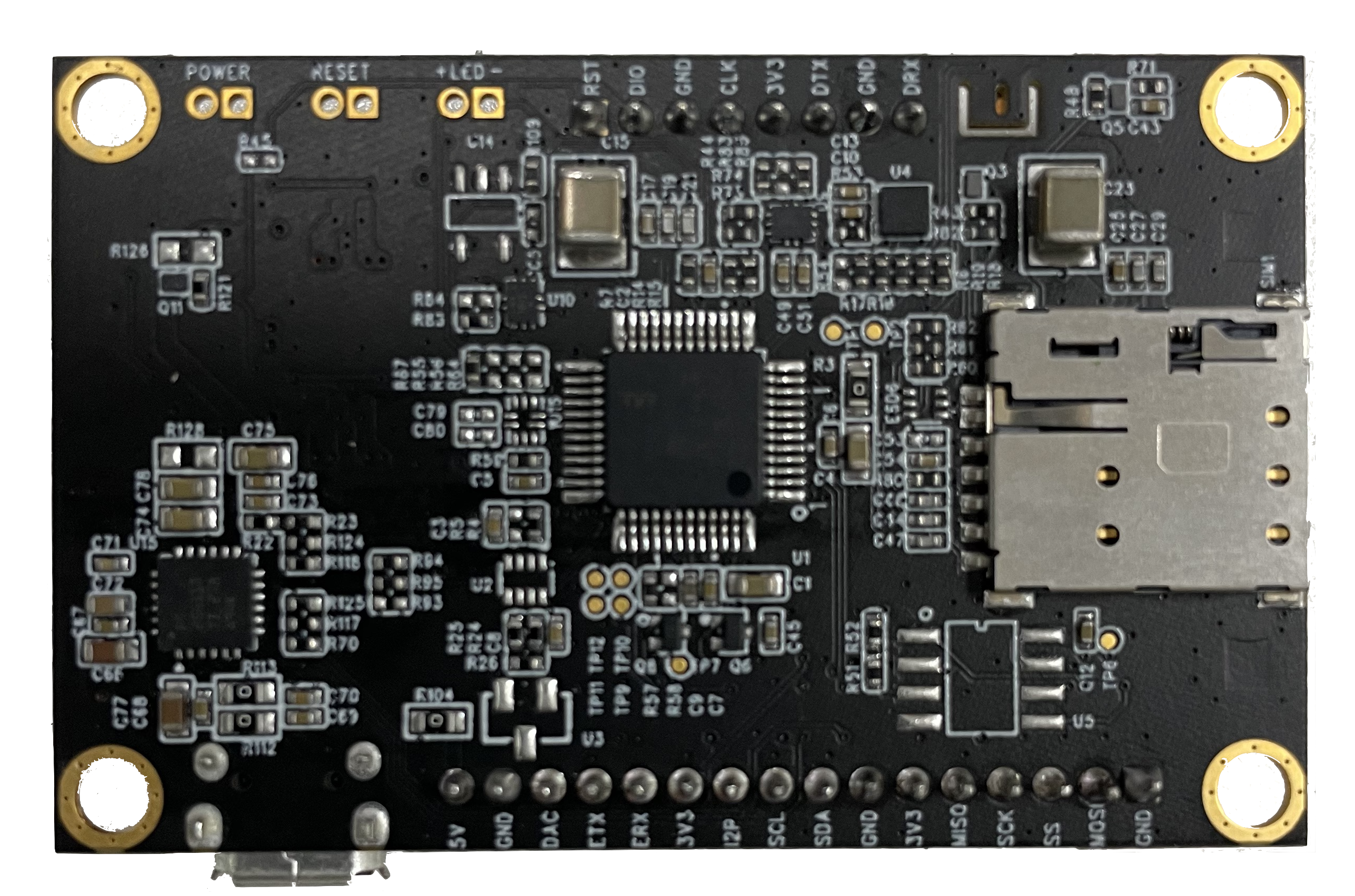

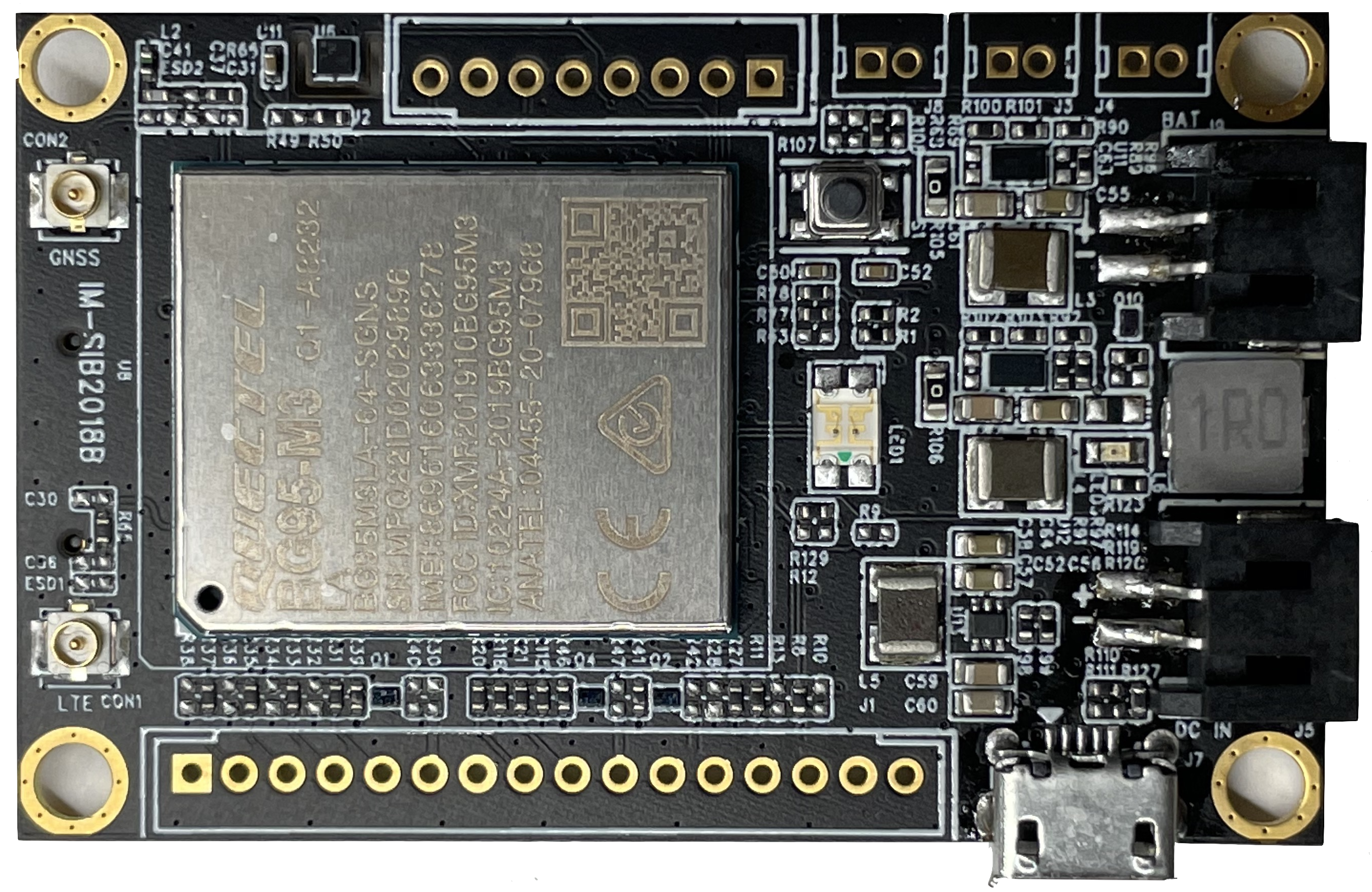

IOT/Tracker Solution Board

• LPWA solution board supporting LTE CAT-M1/CAT-NB2 and GNSS .
• Integrated temperature/humidity sensor and tri-axis digital accelerometer sensor.
• A rich set of internet protocols, industry-standard interfaces extend the applicability of this board to a wide range of M2M and IOT applications.

---

Specification

• Processor: ARM® Cortex® M0+ MCU up to 48 MHz.
• Memory: 32KB RAM & 256KB ROM
• Storage: 16MB SPI Flash
• Communication: Quectel® BG95 LPWA Module with GNSS
• Antenna: LTE(IPEX) & GNSS(IPEX)
• ROHM® tri-axis sensor up to 16G
• TI® HDC2010 humidity sensor
• TI® BQ25611D 3A battery charger support Lithium backup battery.
• Power switch and reset button.
• Input Voltage: 4~13.5VDC
• Input Type: Adapter/Solar Panel/Micro-USB
• Power Consumption: 273.3mWH(Active)/ 1.83mWH(Sleep)
• SIM Type: Nano-SIM
• Dimension: 55(L)x35(W)x8(H)mm
• Weight: 10.3 g

---

Feature

• Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment.
• Support VoLTE (Cat M1 only)
• Support active GNSS antenna
• MIMO technology meets demands for data rate and link reliability in modem wireless communication systems.
• Support SPI/I2C/UART/RS-485 interface for external connection.
• Support share I/O for 12-bit, 350ksps ADC or10-bit, 350ksps DAC.
• Integrated Battery Charger function, 3A Fast-charging current
• Low power consumption at Idle and Stand-by Sleep
