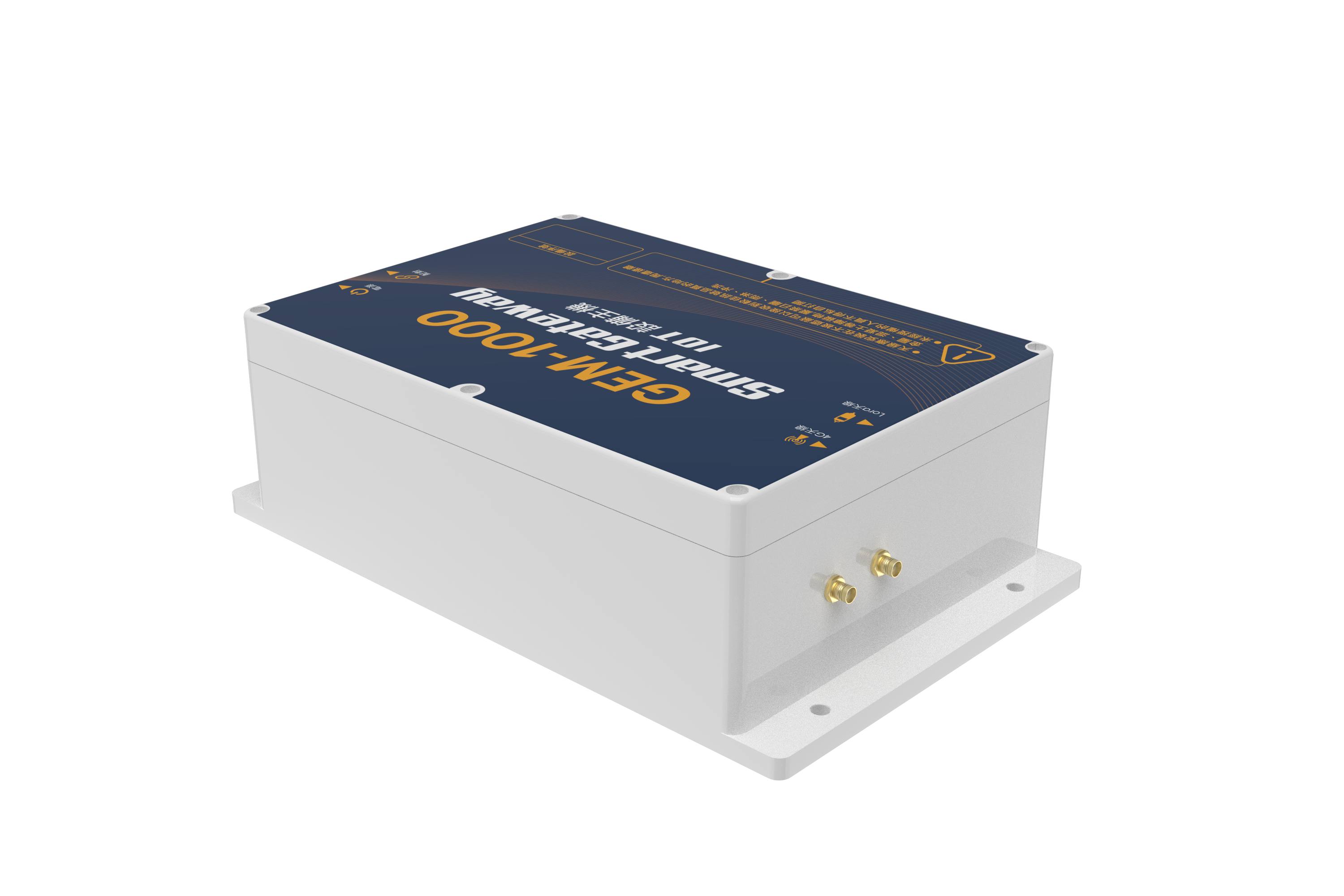

4G Smart Gateway

• The gateway is mainly used to receive environmental data such as temperature, humidity, NH3, CO2 and H2S collected by wireless sensors, and report them to the cloud through 4G network
• The device is using wide voltage input mode of AC90V-AC264V. When AC is out of power, it will convert to battery power supply.

---

Specification

• 4G LTE or LPWA(CAT-M1/CAT-NB2) Wireless Communication for Server Connecting.
• Lora RX 920~926 MHz Wireless Communication for Sensor connecting up to 16 maximum.
• 5dBi 5-meter external SMA Type antenna.
• Mini-SIM.
• Red/Green LED Indicator
• Power switch and Lora pair button.
• Input Power: 85~264 VAC 2A 50/60Hz
• Backup Battery: 2400mA@4.2V 18650 lithium-lon
• I/O Port: RS485 & relay control(16A/250VAC)
• Operation Temperature: -5℃～50℃
• Waterproof: IP65
• Dimension: 265(H)x185(L)x95(W)mm
• Weight: 2.1 kg

---

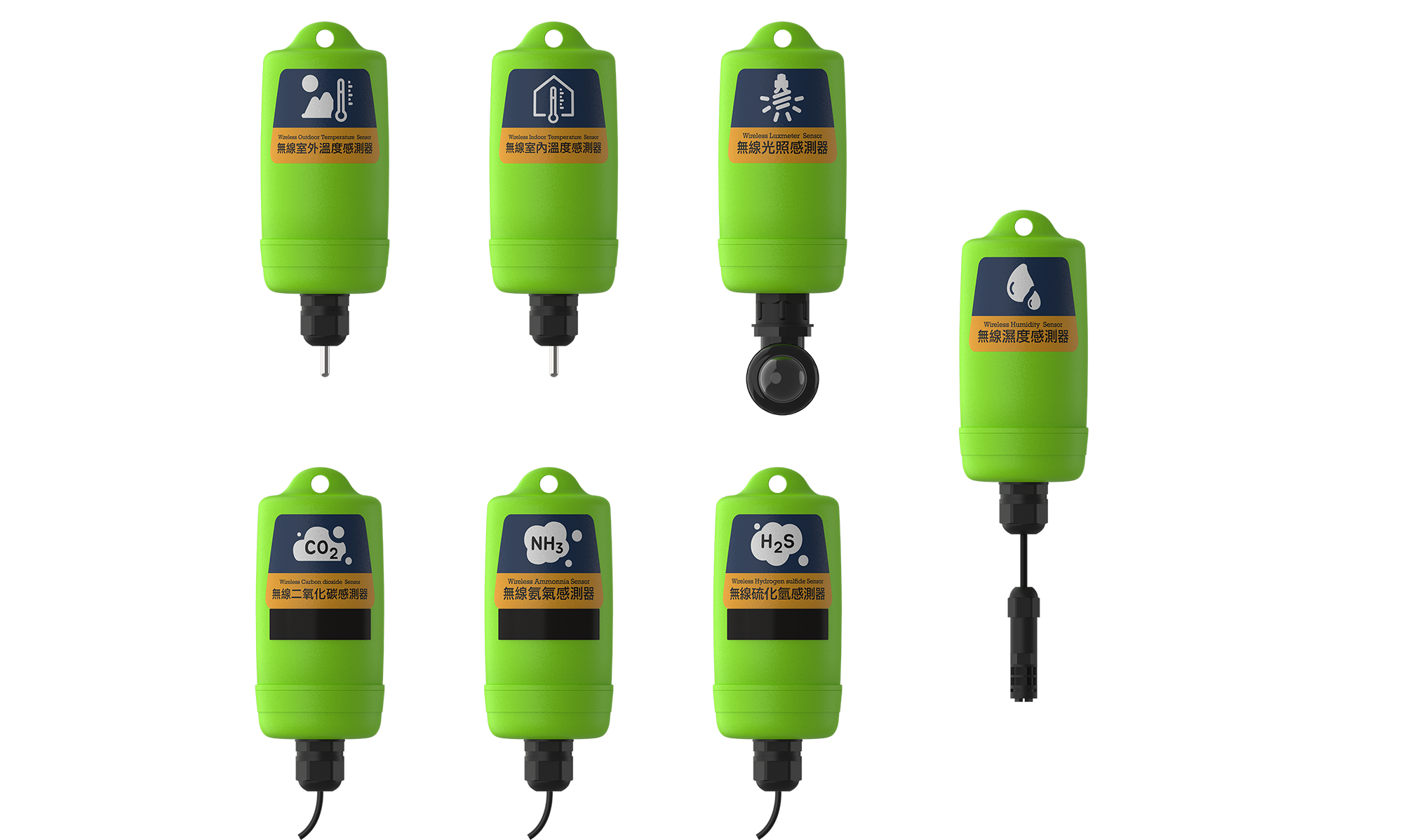

Wireless Sensor

• The sensor is mainly used to retrieve environmental data such as temperature, humidity, NH3, CO2 and H2S, and report them to the 4G smart gateway through Lora network .
• The device are powered by lithium batteries or external DC12V power supply to work.
• Sensor type includes temperature, humidity, light, NH3, CO2 & H2S.

---

Specification

• Lora TX 920~926 MHz Wireless Communication for Server connecting.
• Input Power:
✓2400mA@4.2V 17335 x2 lithium-lon battery for temperature/humidity/light sensor.
✓External DC12V power supply for NH3/CO2/H2S gas sensor.
• Red/Green LED Indicator
• Power switch and Lora pair button.
• Operation Temperature: -5℃～50℃
• Waterproof: IP65
• Dimension: 173(H)x72(L)x72(W)mm
• Weight: 250 g
